Paligo content is stored in a database and each element can have its own unique ID. Certain types of content, such as paragraphs, images and variables have a special type of ID called xinfo and this is always generated by Paligo. Other elements can have an optional ID called xml:id and these can be generated automatically by Paligo or manually by you.
Cross-references in Paligo use the id to identify the target of the cross-reference. Paligo creates the id automatically for some types of cross-reference, primarily those to components that can have a title. It is added as an xml:id attribute. But you may need to add an xml:id attribute manually for cross-references to other types of content. This applies to cross-references between topics and also cross-references to content inside the same topic, for example, to a subsection.
In most cases, we recommend that you cross-reference to a:
-
Section -
Subsection - a
sectioninside anothersection -
A structure that can have a
title, such as atable.
Note
If you want to cross-reference to a different type of content, that is only possible if that content has an xml:id. So you may need to Manually Generate IDs for Cross-references before you can link to it.
It's also possible to set Paligo to auto-generate xml:ids , see Auto-Generate IDs for Cross-References .
You can only add cross-references to elements that have an xml:id. If the element you want to reference does not have an xml:id, you can generate one manually. Paligo has a feature in the editor that generates a suitable id for you. It's not a good idea to make up your own id values, as ids should be unique.
Tip
You can set Paligo to auto-generate the xml:ids, see Auto-Generate IDs for Cross-References.
To generate a unique xml:id for an element:
-

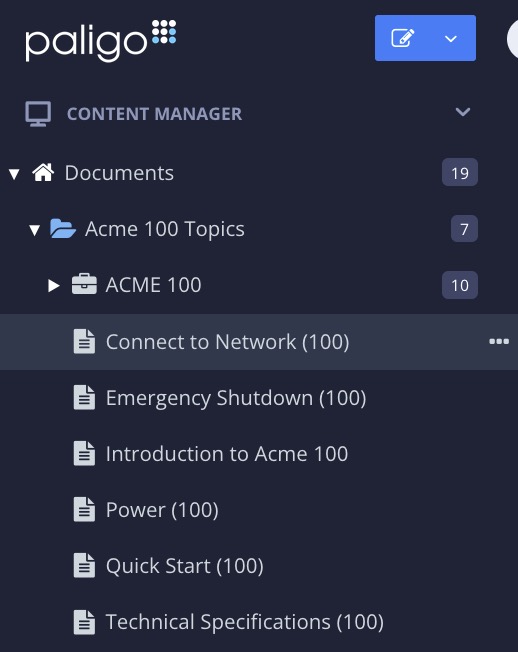

Select the topic or component in the Content Manager to open it in the Editor.
Alternatively, you can Create a Topic and edit that.
-

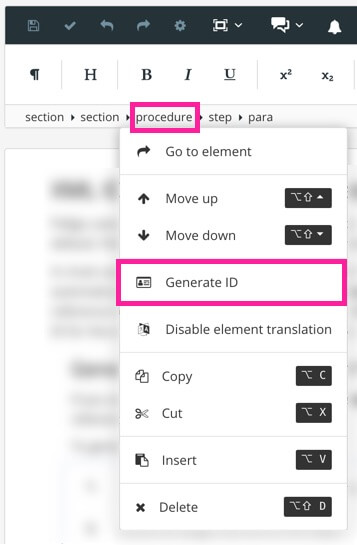

Select the target element In Element Structure Menu and choose Generate ID.
For example, if you want to link to a procedure, select the
procedureelement.Paligo generates an
xml:idfor the element in the Element Attributes Panel -
Select Save.
You can only add cross-references to elements that have an xml:id. This is an attribute that you can add manually, but to save time and effort, it is usually better to let Paligo auto-generate them for you.
To set up automatic xml:id generation, use the Editor settings. There, you can choose which elements should get auto-generated xml:ids. Your choices will apply to all topics in your Paligo instance, and for all users.
-
Select the topic or component in the Content Manager to open it in the Editor.
Alternatively, you can Create a Topic and edit that.
-

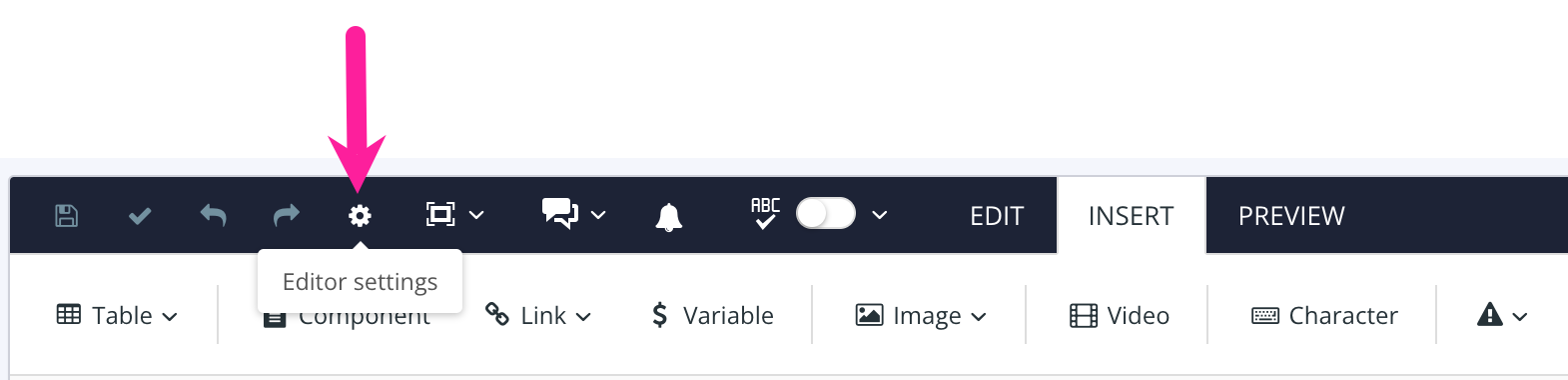

Select the cog icon in the Toolbar.
-

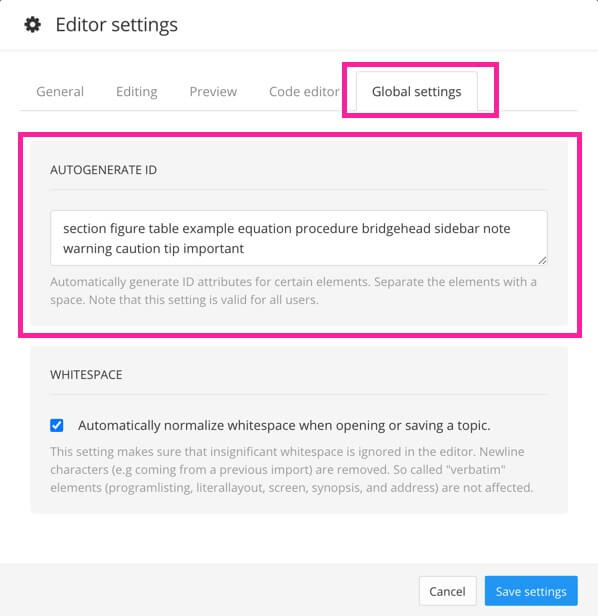

Select the Global settings tab in the Editor Settings.
-
Add the names of elements that should get auto-generated
xml:idsin the Autogenerate ID field.Typically, we find that auto-generating
xml:idsfor the following elements is sufficient for most users (if needed, you can add more elements to the list):section figure table example equation procedure bridgehead sidebar note warning caution tip important
Use a space to separate each element name and make sure to add the element names in lower case.
-
Select Save Settings.
When you, or other users, add a new element to a topic, Paligo checks to see if it is listed in the Autogenerate ID field. If it is listed, Paligo will give that element an xml:id. But it will only give an xml:id to new elements, not elements that previously existed in the topic.
Tip
It is also possible to manually generate xml:ids via Element Structure Menu, see Manually Generate IDs for Cross-references
