Cross-Reference Settings

Avatar
Anders
  • Updated
Follow

In the Layout Editor there are some layout options for cross-references for both HTML5 and PDF output. You can customize the information included in auto-titles, make external links open in a separate tab and more. An auto-title is the text that appears when a cross-reference is added.

To customize cross-references for HTML5 output:

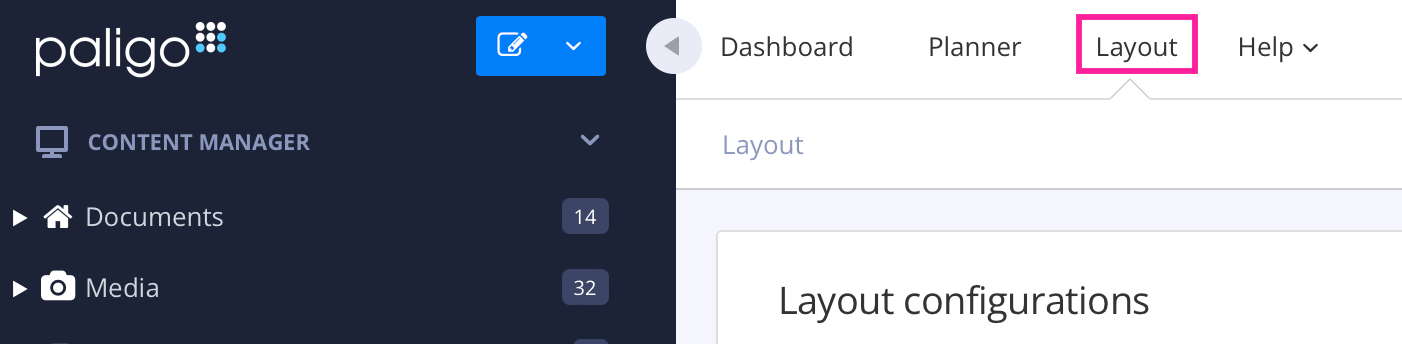

  1. Select Layout in the top menu.

    Paligo editor. The Layout option in the header menu is highlighted.

    Paligo displays a list of Layouts. The list is empty if there are no custom Layouts in your Paligo instance.

  2. Select the Layout you want to update or Create a Layout.

    Tip

    You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.

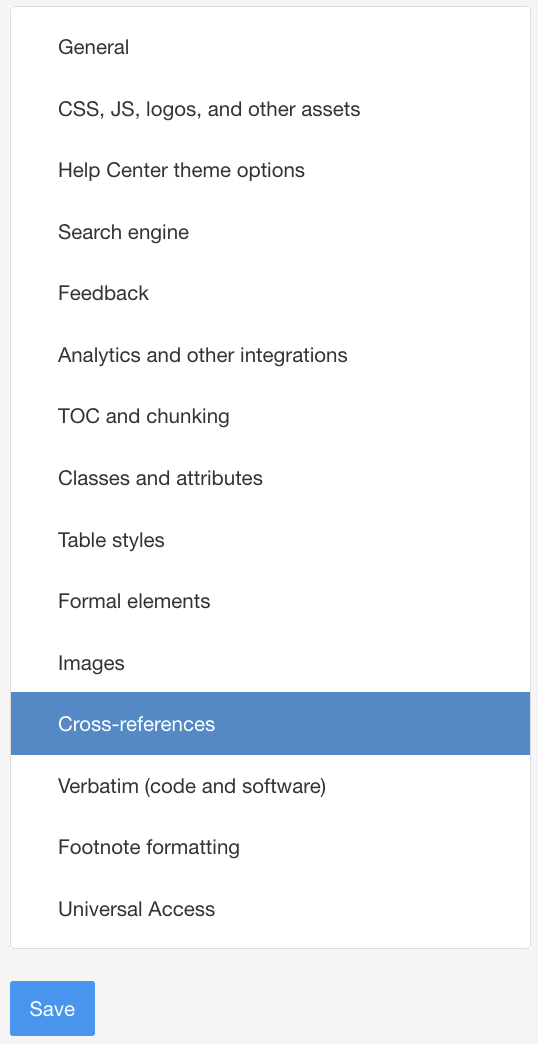

  3. Select Cross-references in the sidebar.

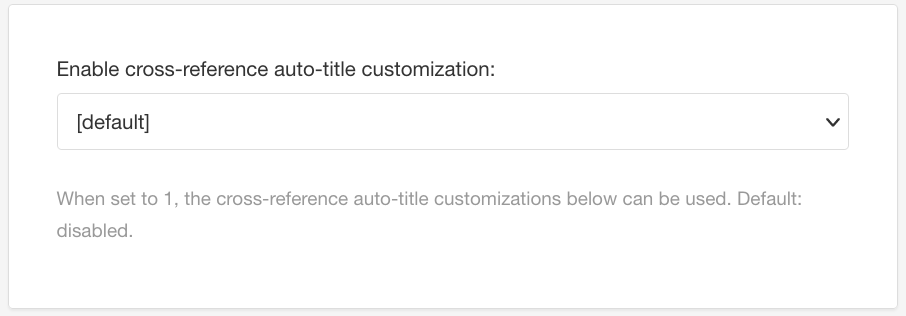

  4. In Enable cross-reference auto-title customization select:

    • Enable to activate auto-title customization.

    • Disable to deactivate the possibility to customize auto-titles. Default

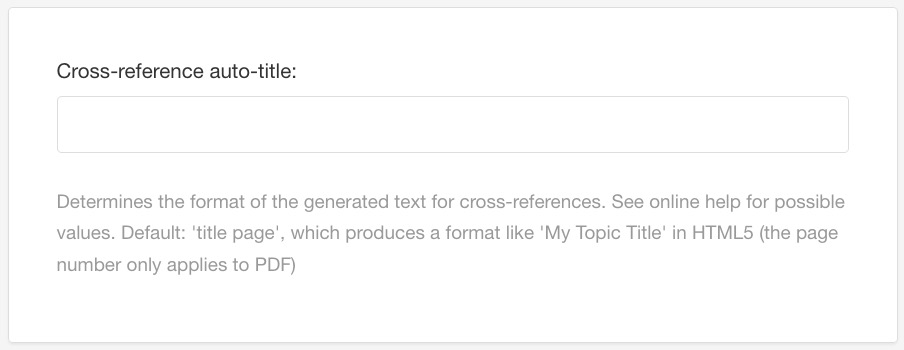

  5. Add keywords in Cross-reference auto-title to customize cross-references for topics.

    Default is title page.

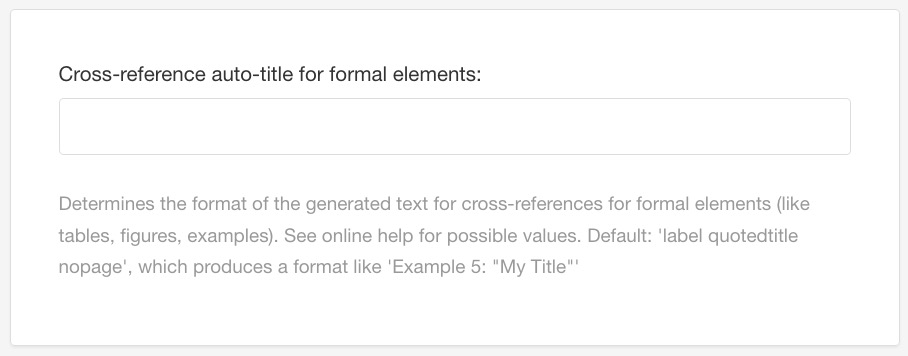

  6. Add keywords in Cross-reference auto-title for formal elements to customize the cross-references for lists, figures, tables, equations and examples.

    Default is label quotedtitle nopage.

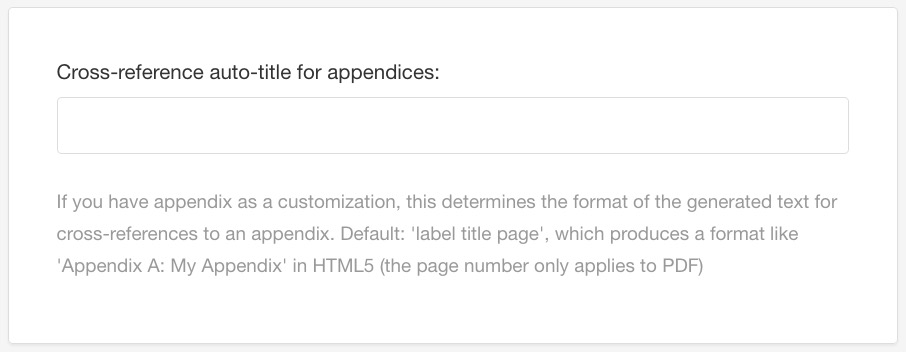

  7. Add keywords in Cross-reference auto-title for appendices to customize the cross-references for appendices.

    Default is label title page.

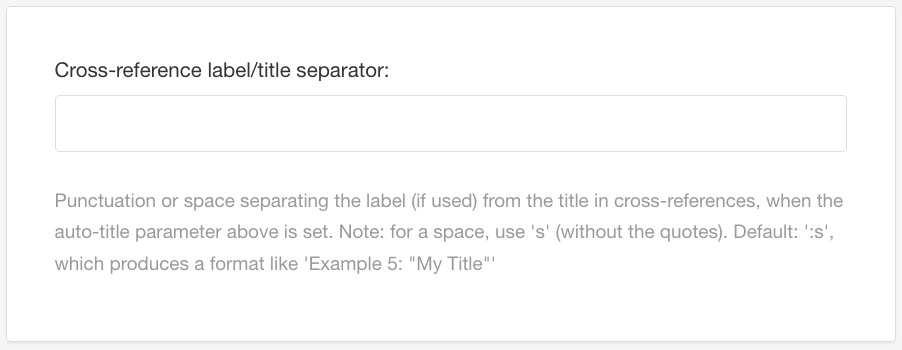

  8. Enter a character (or a combination of characters) in Cross-reference label / title separator to customize the separator.

    Default is :s which adds a colon and a space between the label and title.


    The separator is the character between the label and title.

    Tip

    Examples of characters that can be used:

    • Hyphen -

    • Space s

    • Colon :

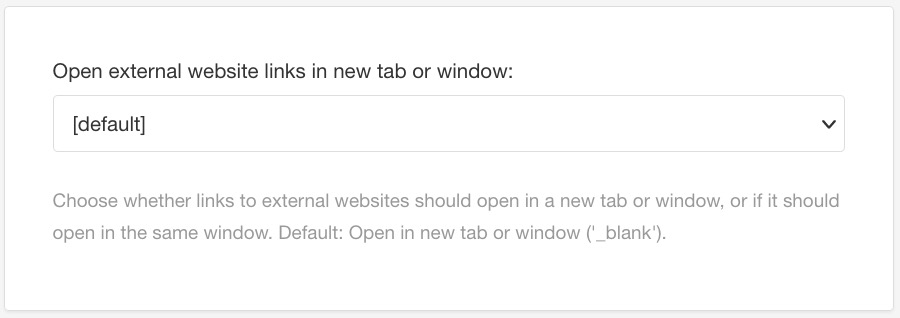

  9. Choose how to open external links in Open external website links in new tab or window.

    • _blank - The link will open in a new tab (or on older browsers a new window). Default

    • _self - The link will be opened in current tab or window.

    • _parent - The link will be opened in the parent frame. Frames are deprecated in HTML5.

    • _top - The link breaks out of all frames and opens in the current tab or window. Frames are deprecated in HTML5.

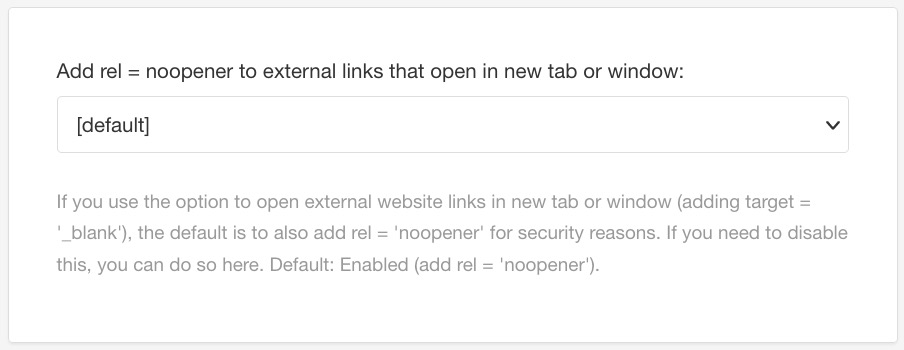

  10. Set Add rel = noopener to external links that open in new tab or window to:

    • Enable to force external links to open in a new tab. Default.

    • Disable to stop external links to open a new tab and instead open the link in current tab.


    Warning

    Due to security reasons this option is always enabled when "Open external website links in new tab or window" is set to _blank .

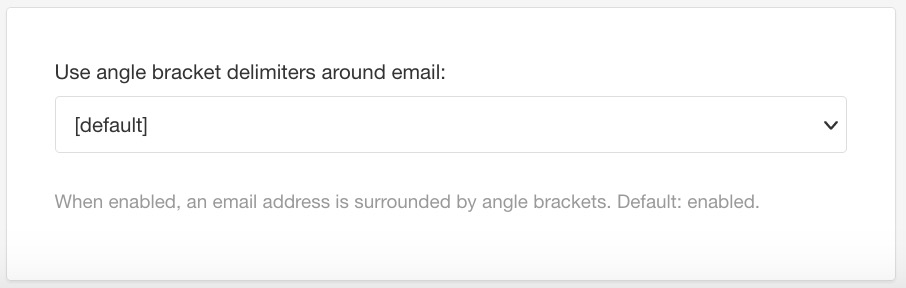

  11. Set Use angle bracket delimiters around email to:

    • Enable to use delimiters around email addresses. Default

    • Disable if delimiters are not be used.


  12. Select Save.

Keywords for Auto-title Customization

By using the keywords below, you can customize the auto-titles for cross-references. As with all auto-text, the keywords will be translated automatically when you publish to another language.

An auto-title can consist of one or more keywords. Add a space between each keyword. The order of the keywords does not matter. Paligo will automatically rearrange the components as follows (depending on which you use):

  1. label

  2. title

  3. page (only for PDF output)

Example 4. Quoted text with page number and label

labelname quotedtitle page

Result: Section "My Topic Title" (page 15).


Tip

You can override the format for individual cross-references by using the xrefstyle attribute. In that case, use the same values, but start with "select: ". For example, select: quotedtitle nopage.

Component

Keyword

Example

Description

label

label

Table 3

Complete label name and number.

labelname

Table

Only the label name.

labelnumber

3

Only the label number.

title

title

My Topic Title

Title without quotes.

quotedtitle

"My Topic Title"

Title in quotes.

page

unspecified

[12]

Standard page citation if no value is given for the page component.

page

(page 12)

Page number in parentheses.

pagecomma

, page 12

Page number after a comma.

Note that this format may be unsuitable for some languages. Some languages use commas in a different way.

Page

Page 12

Capitalized page label.

pageabbrev

(p. 12)

Abbreviated label in parentheses.

pageabbrevcomma

, p. 12

Page number after a comma and page abbreviated.

This option does not work with all languages. Make sure you check for languages you translate to.

In many cases, languages can be added with a request to support.

pagenumber

12

Only the page number.

nopage

 Turn off the page number for the cross-reference.
