Every publication in Paligo automatically gets its own "front matter" called Publication Topic. This topic is used for the front cover, publication date, version number and author details. You can add and delete elements according to own needs.
-
For PDF publications, the "front matter" provides some or all of the content that is on the front cover and any pages that come before the table of contents. Learn more, see Design Covers for PDFs .
-
For HTML outputs, the "front matter" is content that appears on a web page. You can access the page by selecting the link to the publication in the breadcrumb at the top of the topic. Learn more, see Themes for HTML5 Help Centers .
Tip
Learn more about styling the publication, see Style and Customize your Outputs.
Note

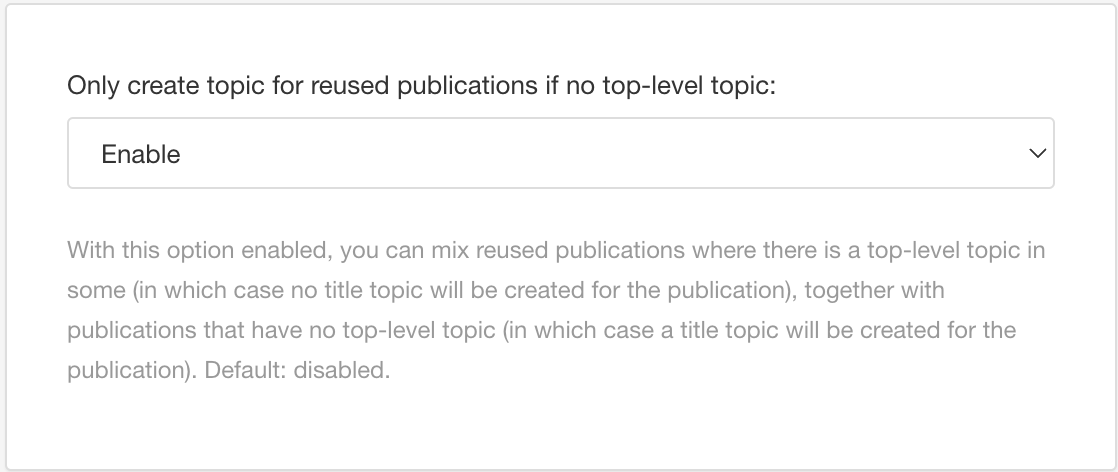

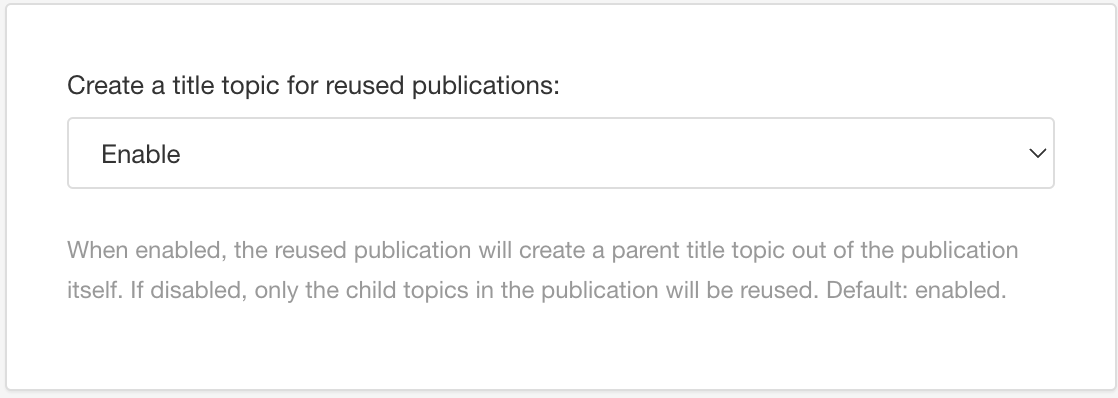

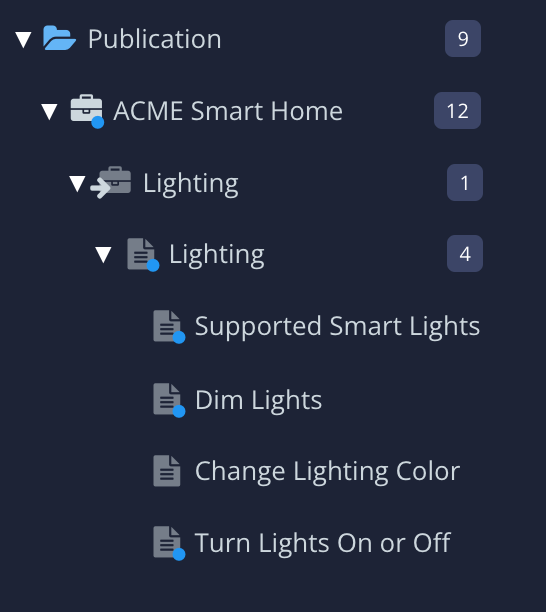

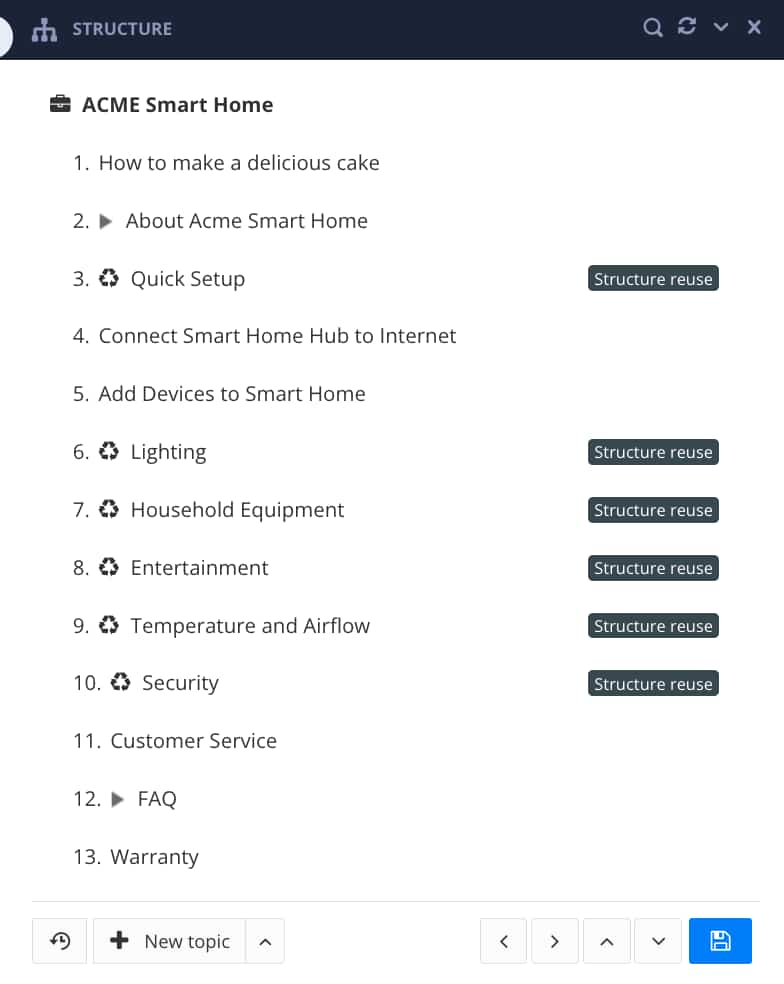

For reused publications, there are settings in the HTML layout that you can use to control the publication topics.

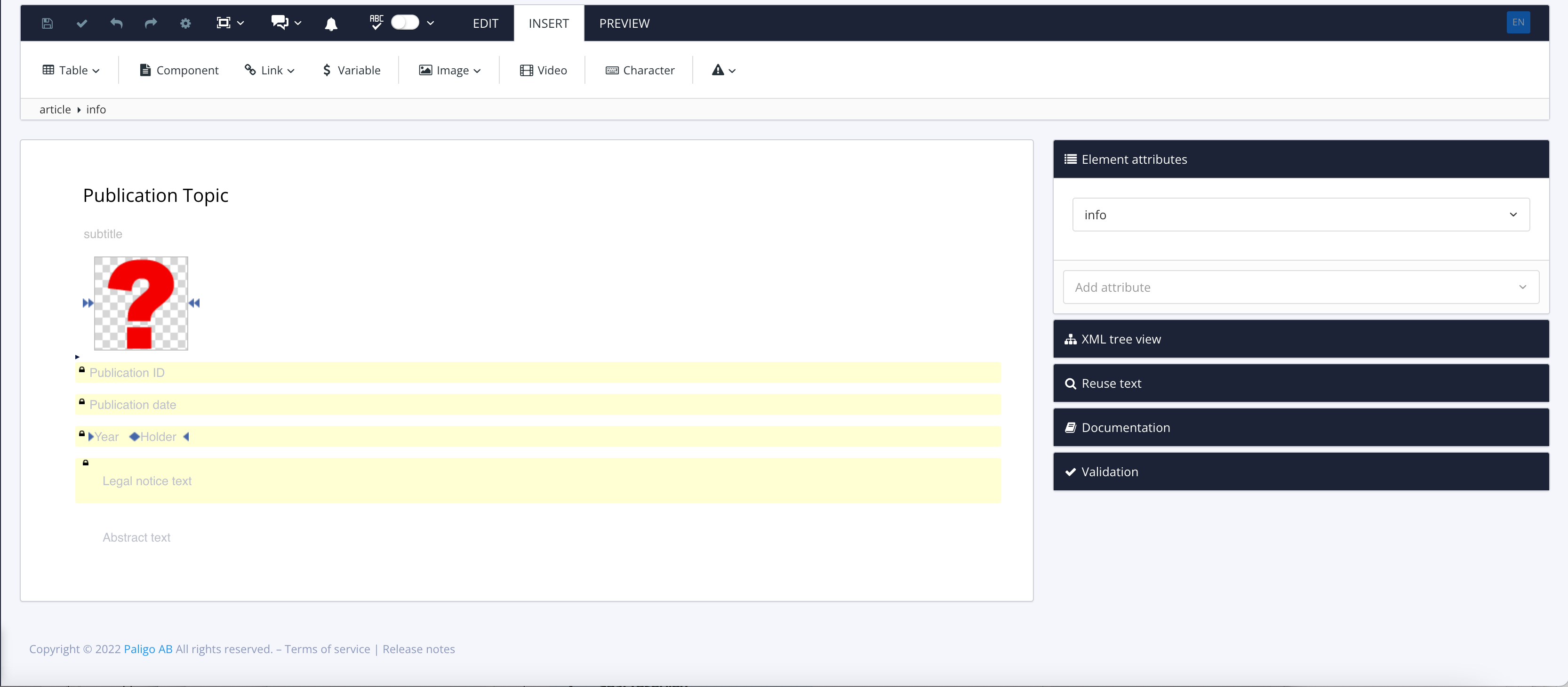

As a Paligo author, you can edit the publication topic to control what information that appears in the "front matter". To display or edit a publication topic, see Display a Publication Topic and Edit a Publication Topic.
A publication topic has article
as the top-level element instead of section
. Inside the article
element is an info
element. The "front matter" elements need to go inside the info
element. We use the term "info elements" to describe these elements collectively.
By default, Paligo includes the title
, subtitle
, mediaobject
, volumenum
, pubdate
, copyright
, legalnotice
, and abstract
elements inside the info
element.
You can enter values for these elements, add other info elements, and remove any info elements you do not want to use.
Note

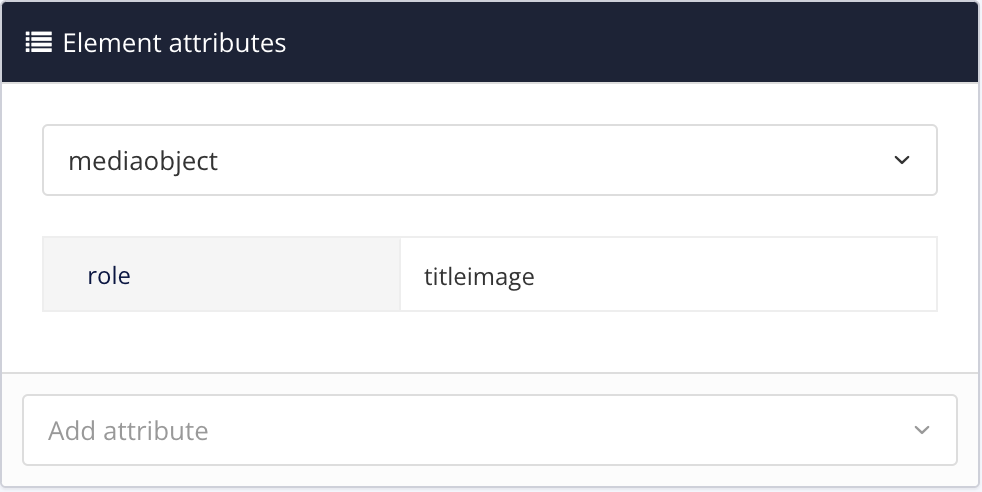

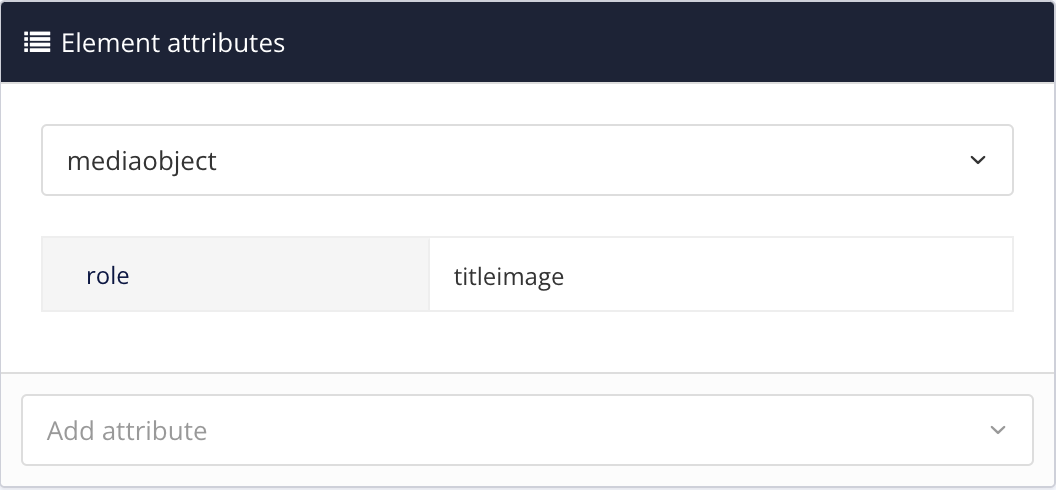

The mediaobject is set to have a role
attribute with the value set to titleimage
. This role and value is needed to make the image a cover image.

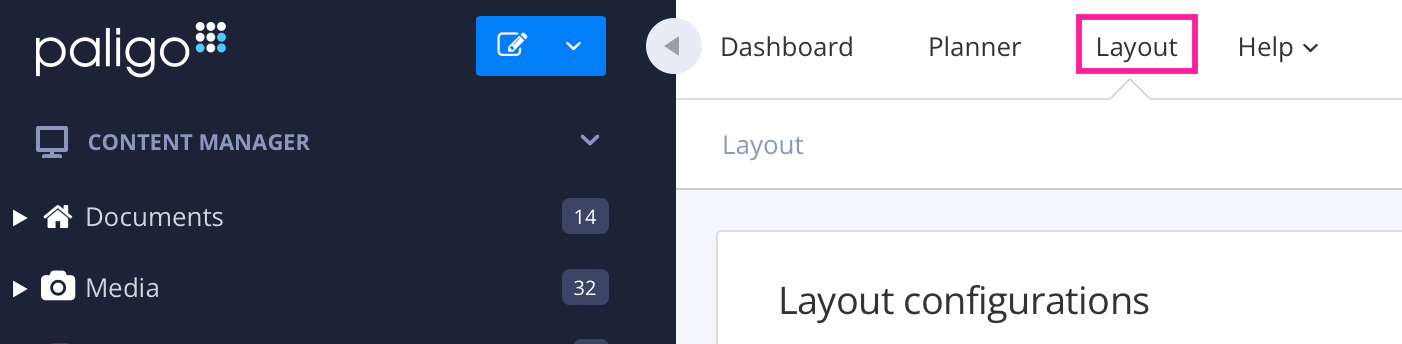

When you have set up your publication topics, you can use the layouts and CSS to control how Paligo processes them and styles them in the output.
-
For PDF output use the settings in the PDF layout, see Style the Info Elements.
-
For HTML5 output use the settings in the HTML5 layout and CSS. To learn how to view the styles in the HTML, make changes and upload CSS, see Style with CSS.
A publication topic has article
as the top-level element instead of section
. Inside the article
element is an info
element. The "front matter" elements need to go inside the info
element. We use the term "info elements" to describe these elements collectively.
By default, Paligo includes the title
, subtitle
, mediaobject
, volumenum
, pubdate
, copyright
, legalnotice
, and abstract
elements inside the info
element.

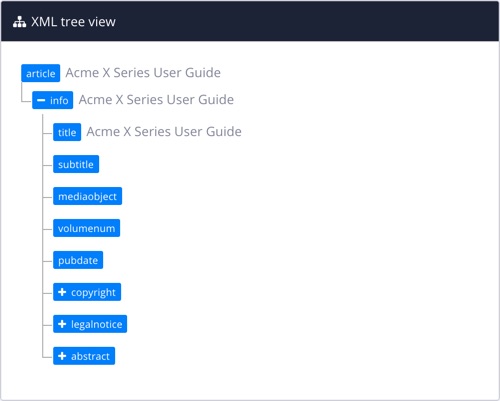

You can see this structure in the XML tree panel:
There are also other elements that you can add, depending on your requirements. To learn how to access the various elements that are available, see Edit a Publication Topic. You can also Remove Info Elements as long as they are optional elements.
Note
By default, Paligo presents the info elements in a fixed order. This may not match the order of the elements in your publication topic. But you can set the published version to match the order shown in the editor. To find out more, see Order of Info Elements
Tip
To find out more about each of the elements, refer to the DocBook standard, where you can find descriptions and information about the structure.

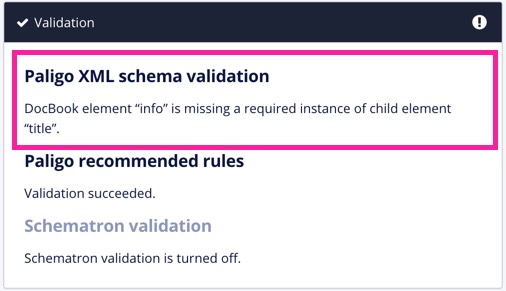

The name of the publication. This is a required element that is included by default and supported in PDF and HTML outputs.
Example 1. Title structure
In publication topics, the top-level element is article
rather than section
(regular topics have section
as the top-level element). Then it has the info
element, and inside this, the title
element.
The following example shows the structure when title
is the only info element being used.
<article> <info> <title>Acme 100X user guide</title> </info> </article>
Typically, you would set up a publication topic to include many other info elements, including copyright
, publish date
, and edition
. These would all be at the same level as title
inside the info
element.

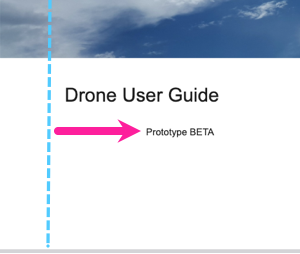

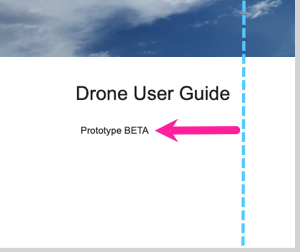

A secondary heading for the publication, often used for describing the purpose of the document or for a strapline. For example, the document title could be "Acme Series 100X" and the subtitle could be "Developer Guide". This is an optional element that is included by default and supported in PDF and HTML outputs.
Example 2. Subtitle structure
To use the subtitle
element, add it inside an info
element in a publication topic. Typically, it is used immediately after a title
element (so both the title
and subtitle
are inside info). If other info elements are also included, those are also added inside the info
element.
<info> <title>Acme 100X user guide</title> <subtitle>Operation and maintenance</subtitle> </info>
Use to add a foreground image. It is intended for use as a product image, but it can be any image. This is an optional element that is included by default and supported in PDF and HTML outputs.
To find out more about adding images for the front pages, see Cover Foreground Images and Cover Background .
This is designed to identify the volume number of the publication in a set of publications. It is a "container" element for other bibliographical elements (which you can add manually). This is an optional element that is included by default and supported in PDF output.
Use to add the date of publication to a document. You can enter the date manually, use a variable, or set Paligo to insert the date automatically. This is an optional element that is included by default and supported in PDF and HTML outputs.
Example 3. Publication date structure
The following example shows the date entered as text inside the pubdate
element. The pubdate
element has to be inside the info
element in the publication topic. Typically, there will also be other elements inside the info
element too, such as title
and subtitle
.
<info> <title>acme 100X user guide</title> <subtitle>Operation and maintenance</subtitle> <pubdate>May 17 2022</pubdate> </info>
Here, the text is typed in manually, but you could use a variable for the date if you prefer.
You can also set Paligo to add the date of publication automatically. For this, make sure that the pubdate
element is in the publication topic and also that it is empty (has no text or variable value).
<info> <title>acme 100X user guide</title> <subtitle>Operation and maintenance</subtitle> <pubdate></pubdate> </info>
Paligo will add the publication date automatically as long as you add a date value to:
-

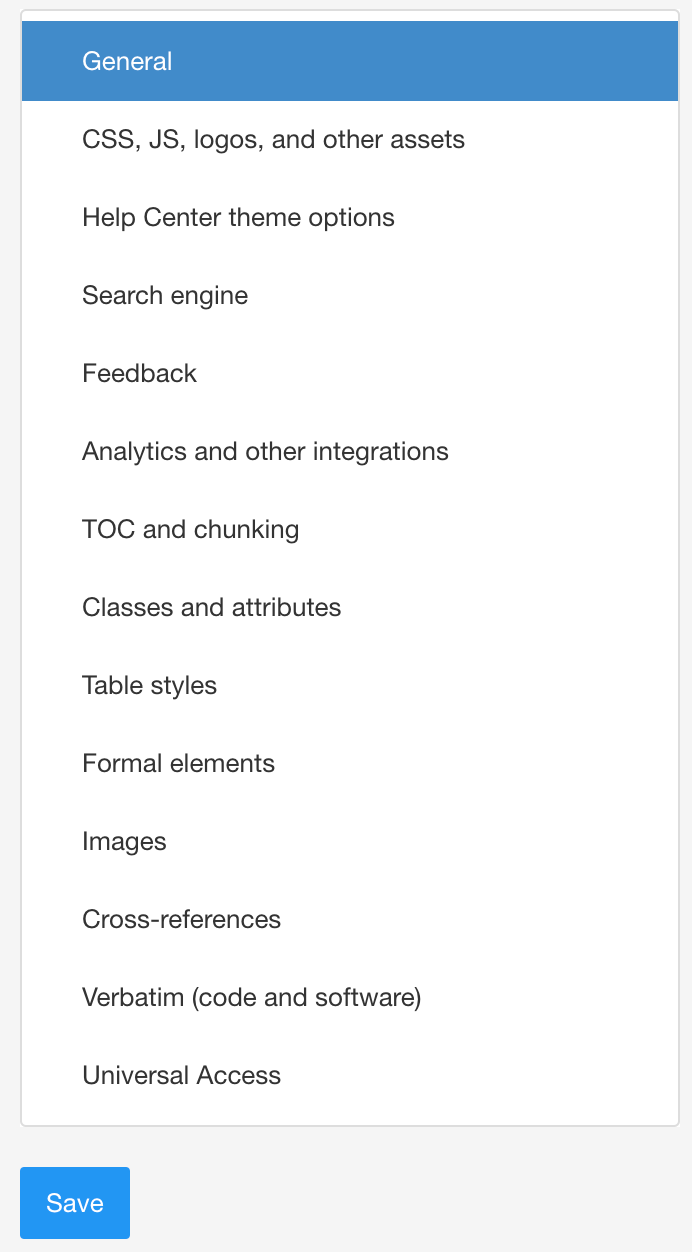

General > Today's date for publication date in your HTML layout
-

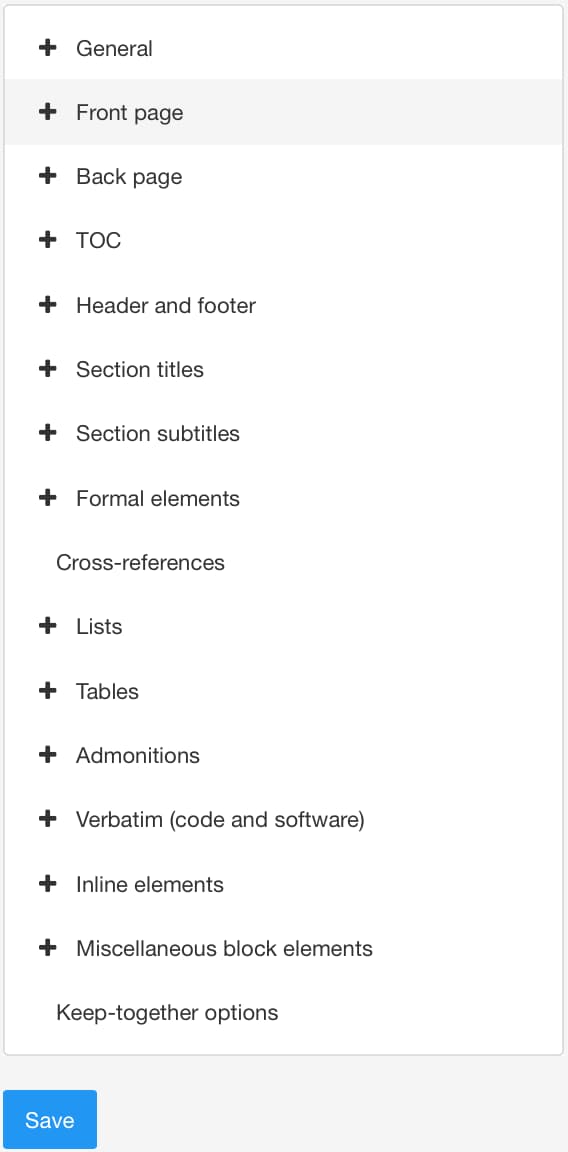

Front page > Info elements > Today's date for publication date in your PDF layout.
If the pubdate
element contains a value, that value is shown and the layout settings are ignored. If there is no date in the pubdate
or the layout settings, the publication date is excluded from the output.
Use to add copyright details to the publication. This is an optional element that is included by default and supported in PDF and HTML outputs.
Example 4. Copyright structure
The following code shows the correct structure for a copyright entry. Note that the copyright
element has to be inside an info
element, along with other info elements such as title
. The year
and holder
are inside the copyright
element.
<info> <title>Acme 100X user guide</title> <copyright> <year>2022</year> <holder>Acme Enterprises</holder> </copyright> </info>
In the output, the copyright part appears as:
Use to add legal information such as disclaimers and statements regarding liability. This is an optional element that is included by default and supported in PDF and HTML outputs.
Example 5. Legal notice structure
The following example shows the correct structure for a legal notice. When you add the legalnotice
element, it has to be inside an info
element, along with any other info elements such as title
. Also, you need to add another element inside it to contain the text, such as a para
element.
<info> <title>Acme 100X user guide</title> <legalnotice> <para>All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer shall perform repairs to components. Failure to observe this information can result in injury or equipment damage.</para> <para>All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher. For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.</para> </legalnotice> </info>
Use to add a summary of a publication and or topic. The abstract
is also used as the meta description for the publication in HTML outputs. This is important for Search Engine Optimization (SEO) if you are making your HTML content available to Internet search engines.
This is an optional element that is included by default and supported in PDF and HTML outputs. You can also add it to individual topics (inside an info
element) to provide meta descriptions for each topic.
Example 6. Abstract structure
To use an abstract
element in a publication topic, add it inside the info
element (alongside other info elements, such as title
). Then add an element inside the abstract
element to contain the text, for example, a para
element.
<info> <title>Acme HomeHub User Guide</title> <abstract> <para>Learn how to use the Acme SmartHome hub to manage your household devices from your phone.</para> </abstract> </info>

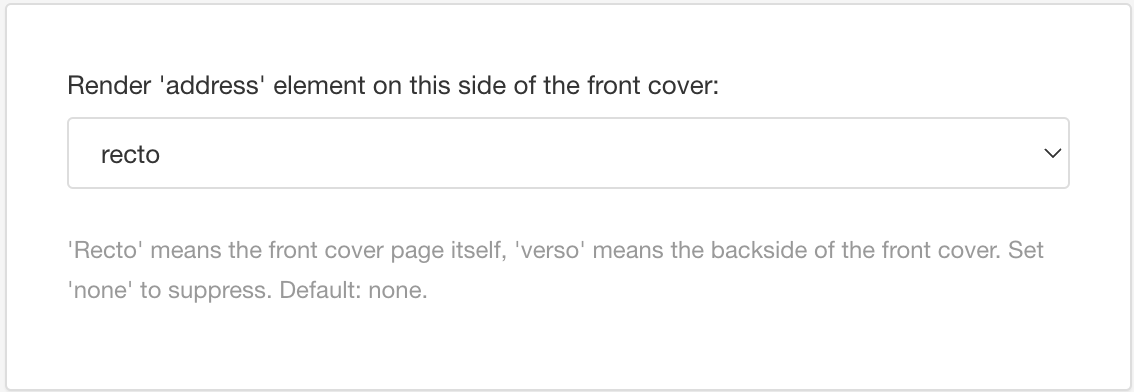

Use to add the address of an organization. This is a verbatim element, so any formatting you apply, such as line breaks, is kept in the output. You can enter the entire address directly in the address element
or you can add its "child" elements, such as street
and city
to create a more structured address.
This is an optional element that is supported in PDF output.
Example 7. Address structure
To use the address element and its child elements for each part of the address, add them in a structure inside the info element. The address element is at the same level as other info elements, such as title.
The following code shows an example:
<info> <address> <street>1A Main Street Business Estate</street> <city>Randomtown</city> <state>NY</state> <postcode>12345</postcode> <country>USA</country> </address> </info>
The benefit of this approach is that, if needed, you can reference each part of the address in other topics.
If you enter the address as regular text, the structure is much simpler:
<info> <title>Acme 100X user guide</title> <address> 1A Main Street Business Estate Randomtown NY 12345 USA </address> </info>
With this simpler approach, you can only reference the entire address in other topics.
Use as a container for author
elements when you want to list more than one author. You can then add multiple author
elements inside the authorgroup
. This is an optional element that is supported in PDF and HTML outputs.
Example 8. Authorgroup, author, and orgname structure
The following code shows an example of the structure needed if you are using authorgroup
to contain details of multiple authors. The authorgroup
element has to be inside the info
element, at the same level as other info
elements such as title
. The author
elements are then nested inside the authorgroup
element.
<info> <title>Acme 100X user guide</title> <authorgroup> <author> <personname>Richard Greenwood</personname> </author> <author> <personname>Leanne Matthews</personname> </author> </authorgroup> </info>
If there is only one author, there is no need to use authorgroup
:
<info> <title>Acme 100X user guide</title> <author> <personname>Richard Greenwood</personname> </author> </info>
To name an organization as the author rather than an individual, use the orgname
element:
<info> <title>Acme 100X user guide</title> <author> <orgname>Acme Enterprises</orgname> </author> </info>
Use to add the name of the author to a document. You can enter the name manually or use a variable. This is an optional element that is supported in PDF and HTML outputs.
For examples of the structure for author
elements, see Authorgroup.
Use to add information about the version of the document. We recommend that you use edition
instead of volumenum
for this type of information. This is an optional element that is supported in PDF output.
Example 9. Edition structure
Use the edition
element inside the info
element, along with any other info
elements such as title
. The structure should look like this and you can enter the edition information directly into the edition
element.
<info> <title>Acme 100X user guide</title> <edition>Acme 100x/PBD-10003</edition> </info>
By default, when you publish to PDF, the edition is shown with the word "Edition" after it. The "Edition" is an auto-label and you can remove it by changing the auto-label setting in the PDF layout (see Set Auto-Labels for Info Elements).
Use to credit a person other than the author or editor. This is an optional element that is supported in HTML output.
Example 10. Other credit structure
To use the othercredit
element, add it inside the info
element alongside other top-level info
elements such as title
. Inside the othercredit
element, add a child element to contain the credit information, for example, you could add personname
(other child elements are available).
The structure should look like this:
<info> <title>Acme 100X user guide</title> <othercredit> <personname>Sara Card</personname> </othercredit> </info>
Use to provide a brief description of a publication release. For example, the release information may explain that the document is for a particular version of a product. This is an optional element that is supported in PDF and HTML outputs.
Example 11. Release info structure
To use the releaseinfo
element in a publication topic, add it inside the info
element alongside any other info elements such as title
. You can then add the release details directly inside the releaseinfo
element.
<info> <title>Acme 100X user guide</title> <releaseinfo>Documentation update to include added humidity controls.</releaseinfo> </info>
Use to add a table that contains a row for each revision to the document. You can add revisions to the list manually, and include information about the changes you have made. This is an optional element that is supported in PDF and HTML outputs.
Although revhistory
is an "info" element, you should not use it in the publication topic. Instead, you should create a regular topic for the revision history and add an info
element to it, and then add the revhistory
and revision
elements inside that. For details see Revision History Topic.
By default, Paligo uses a fixed order for the elements in publication topics. When you publish, Paligo will present the elements in this order:
-
title
-
subtitle
-
mediaobject
-
authorgroup
-
author
- This is added as a child of theauthorgroup
element. -
volumenum
-
pubdate
-
edition
-
abstract
-
copyright
-
legalnotice
-
address
-
releaseinfo
Any other info elements that you add will appear in the same order that they are shown in the publication topic. Child elements are shown in order after their parent, for example, personname
will appear as a child of the author element, so will appear before volumenum
.
To change the order for an HTML output, create a custom JavaScript that will move the elements. Then upload the JavaScript file to your HTML layout and publish again (see Upload Customized JavaScript).
For PDF outputs, you can set Paligo to use a free order instead of fixed (see Set the Order of Info Elements). With a free order, the info elements are shown in the same order that they appear in the publication topic .
To help you understand the correct structure for the info elements, we have included a sample publication topic. The example shows the underlying XML so that you can see how the various info elements, such as copyright
and pubdate
, are structured and positioned inside the info
element.

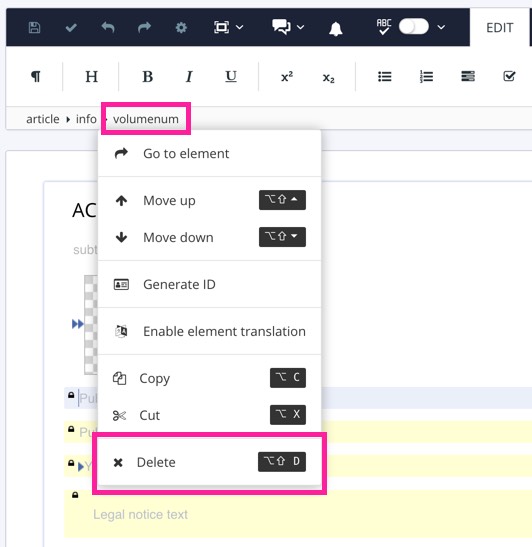

To learn how to add and remove info elements in your own publication topics, see Edit a Publication Topic.
Example 12. Publication topic example
Here is an example of an entire publication topic. Note that we have removed the XML IDs so that the structure is clearer to view. When you create your own publication topic, you will have XML IDs included as well as other XML data.
<?xml version="1.0"?> <article> <info> <title>Acme HomeHub User Guide</title> <subtitle>The smarter way to manage your home</subtitle> <mediaobject role="titleimage"> <imageobject> <imagedata fileref="UUID-4352d337-29fd-6ee2-e88c-e04bed3ce898" xinfo:image="UUID-4352d337-29fd-6ee2-e88c-e04bed3ce898"/> </imageobject> </mediaobject> <volumenum>ACME-SH-123456-A1</volumenum> <edition>ACME 100X PBD-10003</edition> <pubdate>May 17 2022</pubdate> <copyright> <year>2022</year> <holder>Acme Enterprises</holder> </copyright> <legalnotice> <para>All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufacturer shall perform repairs to components. Failure to observe this information can result in injury or equipment damage.</para> <para>All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher. For permission requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the address below.</para> </legalnotice> <address>Acme Enterprises <street>1A Main Street</street> <city>Generic City</city> <postcode>123 456</postcode> <country>USA</country> </address> <authorgroup> <author> <personname>Richard Greenwood</personname> </author> <author> <personname>Leanne Matthews</personname> </author> <orgname>Acme Enterprises</orgname> <author> </author> </authorgroup> <releaseinfo>v16.1 release includes documentation for humidity monitoring and controls, extended range of supported lighting systems, and how to order replacement parts.</releaseinfo> <abstract> <para>Learn how to use the Acme SmartHome hub to manage your household devices from your phone.</para> </abstract> </info> </article>
By default, the publication contains an article
element, an info
element, and then inside that, several other elements, including subtitle
, copyright
, and publication date
. We use the term "info elements" to refer to these lower-level elements collectively, as these type of elements must all be inside the info
element. Learn about the info elements, see Supported Info Elements.
You can make changes to the publication topic so that it meets your requirements, see Edit a Publication Topic and Images in a Publication Topic.
To display the publication topic for one of your publications:
-

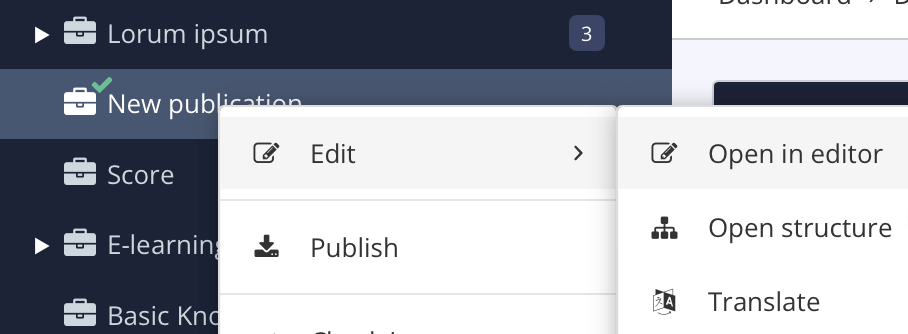

Select the Dotted Menu (...) for the publication in Content Manager.
-
Select Edit and choose Open in editor.

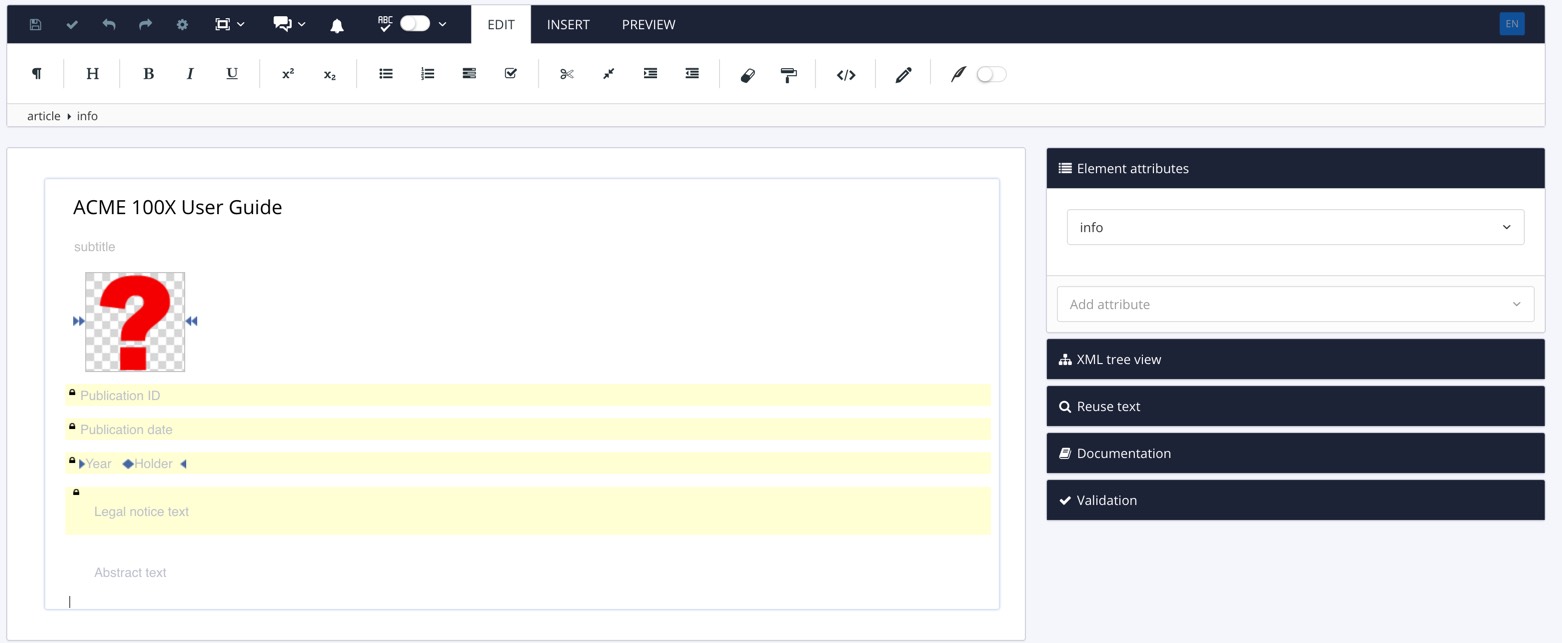

When you create a publication, Paligo adds some commonly used "info elements" to the publication topic, such as copyright
and pubdate
. There are other elements that you can add too, including authorgroup
, author
and edition
.

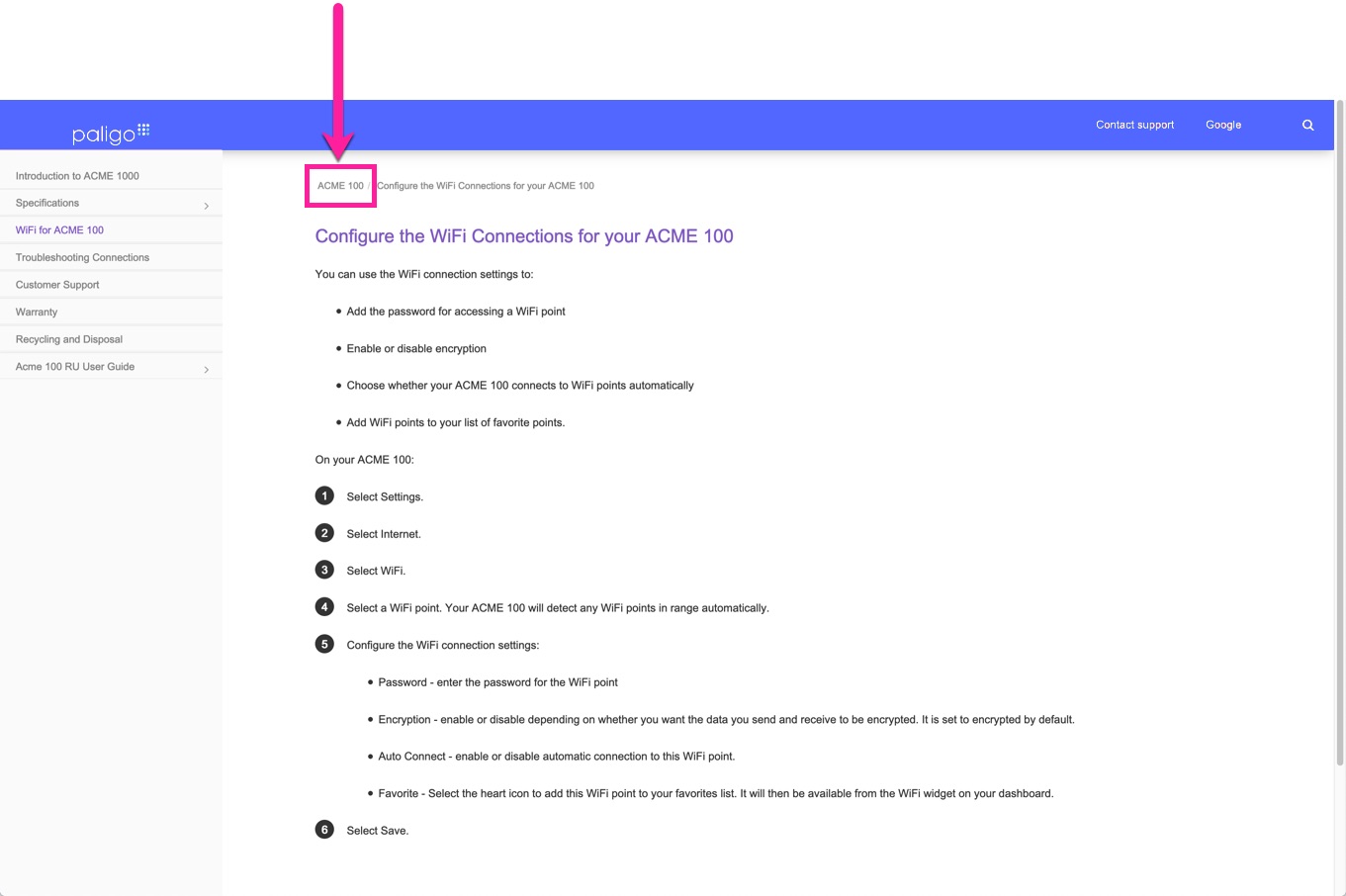

If you do not want a Publication Topic to be clickable in the TOC sidebar or Breadcrumb Homepage Link, see Make Topics Non-clickable Labels (HTML5).
Tip
To help you understand the correct structure for a publication topic, we have included a sample, see Example Publication Topic Structure. The sample shows the XML for a valid publication topic and includes many of the available info elements.
To edit a publication topic:
-
Establish which elements you want to include or exclude, see Supported Info Elements.
-
Select the Dotted Menu (...) for the publication in Content Manager.
-
Select Edit and choose Open in editor.
-
Remove elements not needed.
-
Position the cursor where the new element is to be inserted inside the
info
element. -
Press Alt + Enter ⏎ (Windows) or Command ⌘ + Enter ⏎ (Mac) to display the Element Context Menu.
-
Scroll down the menu and add needed elements.
The menu provides access to all of the valid elements for the selected position. While the elements are valid, Paligo does not make use of them all and some may be excluded from the output. You should only use the elements that are supported (see Supported Info Elements).
-
When you add an element, it is empty by default. You need to define the value that is going to be shown in the output. This could be:
-
Regular text - This is known as "hard coding" as the text is added to the topic and to change it, you would need to edit the topic.
-
Variable - These are containers for text that is defined elsewhere (in a variable set). The benefit of this approach is that you can use a variable set to modify or change multiple publications from one place. There is no need to edit each publication separately. To find out more, see Variables.
-
Dynamic variable - These are special types of variable that take their value from either the client session or from other elements in your content. For example, you could set the copyright year to always use the year that the publication was published. To find out more, see Dynamic Text Variables.
-
An image file (for
mediaobject
structure).
Note
For the
pubdate
element, you can set Paligo to insert the date automatically. For details, see Change Publication Date and Time Format (PDF). -
-
Select Save.
-
If you are publishing to PDF, check that the element(s) are set to be included in the output when published.
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Front page in the sidebar.
-
Select Info elements.
-
Make sure that the appropriate Render <element name> element on this side of the front cover setting has a value of recto (front page) or verso (reverse side).
-
Select Save.
-
Tip
When you publish your publication, it will include the info elements. To learn how to style the info elements, such as setting font colors and positioning content on the front cover or on the reverse side, see:
-
Style with CSS - For HTML outputs, create a custom CSS file with styles to define the look and feel that you want, then upload it to the HTML layout and publish it again.
Most of the elements in a publication topic are optional, so you can add and remove elements to design a publication topic to meet your requirements. For any elements that you do not want to use, select the element in the main flow of the text, and then select it in the element structure menu. From the menu that appears, select Delete.
Note
If you remove an element that is required, Paligo will warn you about this when you save the topic. You will see the message in a pop-up dialog and also in the Validation panel. You will only get the invalid content message if validation is enabled in your editor (see Validation).
By default, the publication topic contains the structure for a single image. The image will automatically be used as the Product Image on the front page, as its mediaobject
has a role attribute with titleimage
as the value. Only the structure for the image is in place, so you will see a red question mark. To insert an image into the existing structure, see Add Image to Publication Topic.
The image structure consists of:
<mediaobject role=“titleimage”> <imageobject> <imagedata/> </imageobject> </mediaobject>
You can also insert additional images in the publication topic, either by using the Insert > Image option or by dragging and dropping an image from your desktop onto the topic.
When you add new images, they use the regular mediaobject
> imageobject
> imagedata
structure and do not have a role
set. They will appear after the product image, in the order they appear in your topic. They are not affected by the product image styles in the layout or any CSS.
Important
Only one image in the publication topic can have the role
attribute value set to titleimage
.
If multiple images have this value, they will appear stacked on top of each other in the same position in PDF output.
You can turn a foreground image into a background image for the cover by adding the role
attribute with the value bg-image
, see Methods for Adding a Background Image to a Cover.
The PDF Layout has a Miscellaneous Block Elements category with settings for styling certain block elements, including address
, literallayout
, and legalnotice
.
Use the PDF Layout's Miscellaneous block elements settings to style the text that appears inside an address
element. There is an Address category that contains a variety of styling options.
To style the Address category for PDF output:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Miscellaneous block elements in the sidebar.
-
Select address.
-
Use Font-family to choose the typeface for the text.
-
Use Font size to control the size of the lettering.
-
Use Font weight to set the thickness of the characters.
-
Use Font style to add or remove emphasis styling from the text. Choose Normal for regular text, Italic for forward leaning text, or Backslant for backwards-leaning text.
Note
Using Backslant can produce poor results, as many fonts do not support it as a separate outline.
-
Set the Font variant to normal for regular sized, mixed case letters or small-caps for smaller, upper-case letters.
-
Use Text transform to capitalize the text. Choose from:
-
Set the Letter spacing.
-
Use Hyphenate to control how words wrap at the end of a line.
-
Scroll down to Color to apply a custom color to the text inside the element.
-
Clear the Use default color checkbox to select a color of your own choice.
-

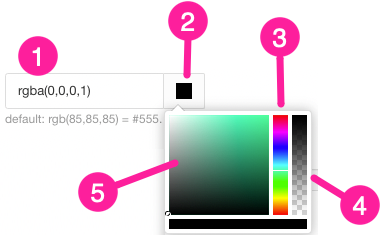

Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
Use the Background color setting to apply a custom color to the background of the block.
Clear the Use default color checkbox and then use the color selector to choose your custom color.
-
Set the styling for the border.
-
Enter a Border-width to define the thickness of the border line. Enter a value and its units of measurement, for example, 3pt or 0.3cm.
Leave the field empty if you do not want a border.
-
Select a Border style from the list.
-
Use the Border color setting to apply a custom color to the border.
Clear the Use default color checkbox and then use the color selector to choose a color.
-
-

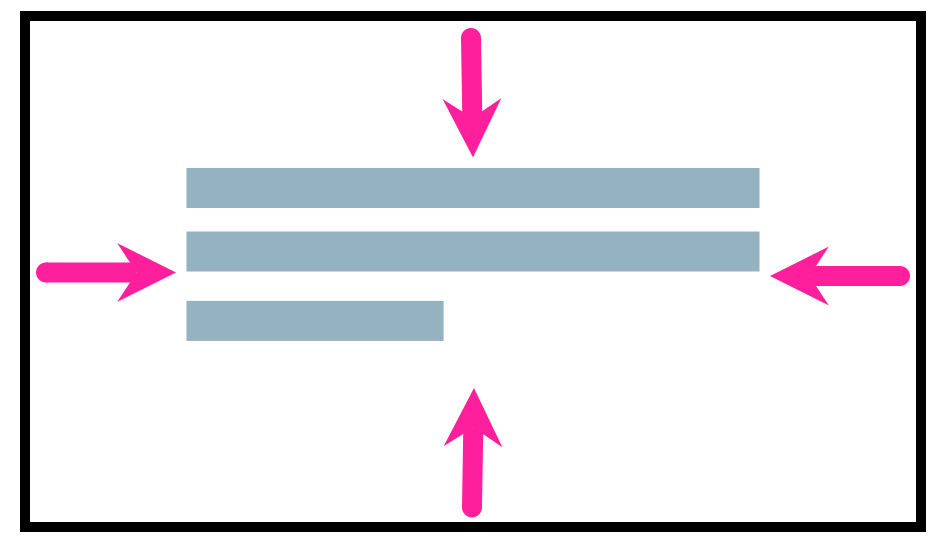

Use the Padding settings to set the amount of space inside the border of the block.
-
Use Padding-start to set the left-side spacing.
-
Use Padding-end to set the right-side spacing.
-
Use Padding-top to set the spacing above the text.
-
Use Padding-bottom to set the spacing below the text.
For each setting, enter a value and its units of measurement, for example, 1.2em.
-
-
Use the margin settings to set the amount of space around the block. There is a separate setting for each side: Margin-left, Margin-right, Margin-top, Margin-bottom.
Enter a value and its units of measurement, for example, 1.2em or 6pt.
-
Use the space settings to control the amount of space above and below the element block.
The Space-before.optimum is for the space above and the Space-after.optimum is for the space below. Enter a value and its units of measurement, for example, 1.2em or 6pt.
Note
These are different to margin settings, as they define a maximum amount of space. For example, if you have an element with a space-after.optimum of 4pt and the next element has a space-before.optimum of 4pt, the space is 4pt. It works as a maximum amount of space, not a sum total.
Also, Space-before.optimum and Space-after.optimum are normally ignored at the boundary of pages and columns.
-
Select Save.
When you publish with this Layout, Paligo will apply the settings to the address
element in your content.
Use the PDF Layout's Miscellaneous block elements settings to style the text that appears inside a literallayout
element. There is a literallayout category that contains a variety of styling options.
To style the literallayout category for PDF output:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Miscellaneous block elements in the sidebar.
-
Select literallayout.
-
Use Font-family to choose the typeface for the text.
-
Use Font size to control the size of the lettering.
-
Use Font weight to set the thickness of the characters.
-
Use Font-style to add or remove emphasis styling from the text. Choose Normal for regular text, Italic for forward leaning text, or Backslant for backwards-leaning text.
-
Set the Font variant to normal for regular sized, mixed case letters or small-caps for smaller, upper-case letters.
-
Use Text transform to capitalize the text. Choose from:
-
Set the Letter spacing.
-
Use Hyphenate to control how words wrap at the end of a line.
-
Scroll down to Color to apply a custom color to the text inside the element.
-
Clear the Use default color checkbox to select a color of your own choice.
-
Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
Use the Background color setting to apply a custom color to the background of the block.
Clear the Use default color checkbox and then use the color selector to choose your custom color.
-
Set the styling for the border.
-
Enter a Border-width to define the thickness of the border line. Enter a value and its units of measurement, for example, 3pt or 0.3cm.
Leave the field empty if you do not want a border.
-
Select a Border style from the list.
-
Use the Border color setting to apply a custom color to the border.
Clear the Use default color checkbox and then use the color selector to choose a color.
-
-
Use the Padding settings to set the amount of space inside the border of the block.
-
Use Padding-start to set the left-side spacing.
-
Use Padding-end to set the right-side spacing.
-
Use Padding-top to set the spacing above the text.
-
Use Padding-bottom to set the spacing below the text.
For each setting, enter a value and its units of measurement, for example, 1.2em.
-
-
Use the margin settings to set the amount of space around the block. There is a separate setting for each side: Margin-left, Margin-right, Margin-top, Margin-bottom.
Enter a value and its units of measurement, for example, 1.2em or 6pt.
-
Use the space settings to control the amount of space above and below the element block.
The Space-before.optimum is for the space above and the Space-after.optimum is for the space below. Enter a value and its units of measurement, for example, 1.2em or 6pt.
Note
These are different to margin settings, as they define a maximum amount of space. For example, if you have an element with a space-after.optimum of 4pt and the next element has a space-before.optimum of 4pt, the space is 4pt. It works as a maximum amount of space, not a sum total.
Also, Space-before.optimum and Space-after.optimum are normally ignored at the boundary of pages and columns.
-
Select Save.
When you publish with this Layout, Paligo will apply the settings to the literallayout
element in your content.
Use the PDF Layout's Miscellaneous block elements settings to style the text that appears inside a legalnotice
element. There is a legalnotice category that contains a variety of styling options.
To style the legalnotice category for PDF output:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Miscellaneous block elements in the sidebar.
-
Select legalnotice.
-
Use Font-family to choose the typeface for the text.
-
Use Font size to control the size of the lettering.
-
Use Font weight to set the thickness of the characters.
-
Use Font-style to add or remove emphasis styling from the text. Choose Normal for regular text, Italic for forward leaning text, or Backslant for backwards-leaning text.
-
Set the Font variant to normal for regular sized, mixed case letters or small-caps for smaller, upper-case letters.
-
Use Text transform to capitalize the text. Choose from:
-
Set the Letter spacing.
-
Use Hyphenate to control how words wrap at the end of a line.
-
Scroll down to Color to apply a custom color to the text inside the element.
-
Clear the Use default color checkbox to select a color of your own choice.
-
Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
Use the Background color setting to apply a custom color to the background of the block.
Clear the Use default color checkbox and then use the color selector to choose your custom color.
-
Set the styling for the border.
-
Enter a Border-width to define the thickness of the border line. Enter a value and its units of measurement, for example, 3pt or 0.3cm.
Leave the field empty if you do not want a border.
-
Select a Border style from the list.
-
Use the Border color setting to apply a custom color to the border.
Clear the Use default color checkbox and then use the color selector to choose a color.
-
-
Use the Padding settings to set the amount of space inside the border of the block.
-
Use Padding-start to set the left-side spacing.
-
Use Padding-end to set the right-side spacing.
-
Use Padding-top to set the spacing above the text.
-
Use Padding-bottom to set the spacing below the text.
For each setting, enter a value and its units of measurement, for example, 1.2em.
-
-
Use the margin settings to set the amount of space around the block. There is a separate setting for each side: Margin-left, Margin-right, Margin-top, Margin-bottom.
Enter a value and its units of measurement, for example, 1.2em or 6pt.
-
Use the space settings to control the amount of space above and below the element block.
The Space-before.optimum is for the space above and the Space-after.optimum is for the space below. Enter a value and its units of measurement, for example, 1.2em or 6pt.
Note
These are different to margin settings, as they define a maximum amount of space. For example, if you have an element with a space-after.optimum of 4pt and the next element has a space-before.optimum of 4pt, the space is 4pt. It works as a maximum amount of space, not a sum total.
Also, Space-before.optimum and Space-after.optimum are normally ignored at the boundary of pages and columns.
-
Select Save.
When you publish with this Layout, Paligo will apply the settings to the legalnotice
element in your content.
Every publication in Paligo has a Publication Topic that acts as a container for the front page. It is usually set up to include an image for the front cover, details about the author, copyright information and similar content, see Supported Info Elements. This also applies to subpublications, which are publications reused as sections inside a parent publication.
In the image shown below, there is the main publication named "ACME Smart Home" and it contains a mixture of topics and subpublications. Each publication and subpublication has its own "publication topic".
-
For PDF outputs, Paligo only includes a publication topic for the top-level publication (the main publication). It excludes the publication topics for any subpublications so that the "front matter" only exists at the start of the PDF file.
-
For HTML outputs, you can choose whether the output includes publication topics for both the top-level publication and the subpublications OR only for the top-level publication.
For HTML outputs, you can choose whether the output include publication topics for both the top-level publication (main publication) and the subpublications OR only include a publication topic for the top-level publication (parent publication).
Before you can adjust the layout settings, you have to Create a Layout.
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select General.
-
Use Create a title topic for reused publications to control whether publication topics are included for subpublications for HTML5.
-
Choose Enable to include a publication topic for both the main publication and each sub-publication.
-
Choose Disable to only include a publication topic for the main publication. The publication topics for subpublications will be excluded.
-
-
Use Only create topic for reused publications if no top-level topic to include or exclude the publication topics.
-
Choose Enable to use the top-level topic as a publication topic for the subpublications.
If enabled, you must remember to link to a topic in the subpublication, not to the subpublication itself.
-
Choose Disable to use the regular publication topic for the subpublications.
-
-
Select Save.
By default, a publication topic contains a subtitle
element that you can use to add a secondary title for a document. When the subtitle is in place, you can style it by using the settings in a PDF layout. There are various settings for margins, font style, size and color.
Note
If your publication does not have a subtitle, you can edit your publication topic and add the subtitle
element and text (see Edit a Publication Topic).
To style the subtitle for a front cover:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Front page in the sidebar.
-
Select Subtitle.
-
Use Display a single language subtitle to set the subtitle to appear in a single language or in many languages.
-
Set the position for the subtitle in relation to the content area.
Use:
-
Subtitle margin left to set a left indent for the subtitle. This indent applies when the subtitle is set to align to the left.
-
Subtitle margin right to set a right indent for the subtitle. This indent applies when the subtitle is set to align to the right side of the content area.
-
-
Set the spacing for the subtitle:
Use:
-
Space-before front cover subtitle to set the amount of space above the subtitle.
-
Space-after front cover subtitle to set the amount of space below the subtitle.
For both settings, enter a value and its units of measurement.
You can use absolute values, such as 1.2em or 6pt, or you can use relative values, for example, 110%. Relative values are calculated as a percentage of the main body font size.
-
-
Use Font family for front cover subtitle to choose the typeface for the subtitle text.
-
Set the Font size for the front cover subtitle.
-
Set the Font weight for front cover subtitle. This sets the boldness of the font and the effect varies depending on what font-family is used.
-
Use Font style for front cover subtitle to add or remove emphasis styling from the subtitle text. Choose Normal for regular text, Italic for forward leaning text, or Backslant for backwards-leaning text.
Note
Using Backslant can produce poor results, as many fonts do not support it as a separate outline.
-
Set the Font variant for front cover subtitle to normal for regular sized, mixed case letters or small-caps for smaller, upper-case letters.
-
Set the Capitalization for front cover subtitle. This controls whether characters are shown in upper case, lower case, or a combination of the two.
Note
If the Font variant for front cover subtitle is set to small-caps, and you choose Capitalize, the entire subtitle will be in capital letters. The first letters of each word will be larger.
-
Set the Letter spacing for front cover subtitle. This is the amount of horizontal spacing between each letter.
To increase the amount of spacing, enter:
-
A relative amount and units of measurement, for example, 0.2rem.
-
An absolute amount and units of measurement, for example, 1px.
To decrease the amount of spacing, enter a negative relative or absolute amount, for example, -1px.
-
-
Use Color for front cover subtitle to apply a custom color to the text in the subtitle.
-
Clear the Use default color checkbox to select a color of your own choice.
-
Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
-
Set the Alignment for front cover subtitle.
Choose from:
-
Select Save.
When you use this Layout to publish to PDF, Paligo will apply the settings you have chosen.
To style the title on a front cover for PDF outputs, use the PDF Layout settings.
In the Front page category, there are two subcategories of settings for styling the title:
-
Title block
Use these settings to control the position of the title and to style the horizontal line beneath the title.
-
Title
Use these settings to change the appearance of the title.
To control the position of the title on the front cover:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Front page in the sidebar.
-
Select Title block.
-
Use Border for title block to add a border around the edges of the title block. A border can be useful as a temporary guide when you are setting the margins. It makes it is easier to judge the distances for margins.
Enter the line thickness followed by the line style and color, for example, 3pt dotted green.
-
Set the position of the title block on the front cover.
Note
We recommend that you read Understanding the Front Cover Margins before you set any title margins. There, you can learn how to calculate the margins for your content, taking into consideration any page margins and body margins that are already in place.
Use these settings to set the position:
-
Title block distance from top - Use to set the distance from the top of the content area to the start of the title block.
-
Title block margin left - Use to set the distance from the left edge of the content area to the left edge of the title block.
-
Title block margin right - Use to set the distance from the right edge of the content area to the right edge of the title block.
For each setting, enter the value and include the units of measurement, for example, 3.5cm.
-
-
Select Save.
When you publish with this Layout, Paligo will apply the title block settings that you have chosen.

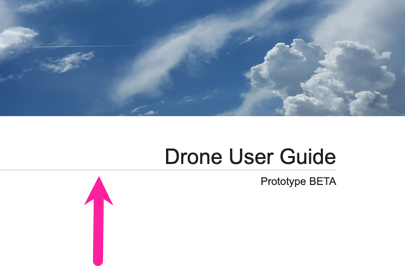

You can choose to have a horizontal rule under the title on your front cover. For this, use the Title block settings in your PDF Layout. You can also set the line's thickness and color.
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Front page in the sidebar.
-
Select Title block.
-
Use the following settings to style a horizontal rule under the title:
-
Width of horizontal rule under title - If you want a horizontal line under the title, enter the line thickness, for example, 3pt.
-
Color of horizontal rule under title - Use to set the color of the horizontal line under the title.
-
Clear the Use default color checkbox to select a color of your own choice.
-
Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
-
-
Select Save.
When you publish with this Layout, Paligo will apply the title block settings that you have chosen.
To style the title for a front cover:
-
Select Layout in the top menu.
-
Select the Layout you want to update or Create a Layout.
Tip
You can copy the URL of the Layout Editor and paste it into a new tab in your browser. This can be useful if you frequently switch between your Paligo content and the Layout settings.
-
Select Front page in the sidebar.
-
Select Title.
-
Use Display a single language title to set the title to appear in a single language or in many languages.
-
Use Font family for front cover title to choose the typeface for the title text.
-
Set the Font size for the front cover title.
-
Set the Font weight for front cover title. This sets the boldness of the font and the effect varies depending on what font-family is used.
-
Use Font style for front cover title to add or remove emphasis styling from the title text. Choose Normal for regular text, Italic for forward leaning text, or Backslant for backwards-leaning text.
-
Set the Font variant for front cover title to normal for regular sized, mixed case letters or small-caps for smaller, upper-case letters.
-
Set the Capitalization for front cover title. This controls whether characters are shown in upper case, lower case, or a combination of the two.
-
Set the Letter spacing for front cover title. This is the amount of horizontal spacing between each letter.
To increase the amount of spacing, enter:
-
A relative amount and units of measurement, for example, 0.2rem.
-
An absolute amount and units of measurement, for example, 1px.
To decrease the amount of spacing, enter a negative relative or absolute amount, for example, -1px.
-
-
Use Color for front cover title to apply a custom color to the text in the title.
-
Clear the Use default color checkbox to select a color of your own choice.
-
Set the color either by:
-
Entering an RGBA code for the color you want (1).
-
Selecting the Color square to display the color selector (2).
-
Choose the color with the spectrum bar (3).
-
Control the transparency with the opacity bar (4).
-
Choose the color shade with the main color panel (5).
-
-
-
-
Set the Alignment for front cover title.
Choose from:
-
Select Save.
When you use this Layout to publish to PDF, Paligo will apply the settings you have chosen.
Comments
0 comments
Article is closed for comments.
